Chevrolet/GMC Silverado/Sierra Crew Cab
AV96D Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Dual 10" or 12" Subwoofer Box
♦Upward Firing Enclosure
♦Platinum Spring Loaded Terminal
♦Made in the USA

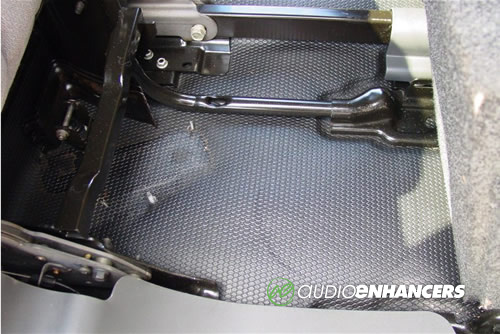

♦Installation: Fits under rear seat.
Width |
Height w/ speaker ring |
Top Depth |
Bottom Depth |
43 1/2" |
5 5/8" |
16 1/2" |
16 1/2" |
AV96D with 12"
Width |
Height w/ speaker ring |
Top Depth |
Bottom Depth |
48" |
5 1/8" |
16 1/2" |
16 1/2" |
Fits the Following Vehicles
♦01–07 1500HD, 2500HD and 3500 Chevy | GMC Crew Cab
Model
|
(Vb) - Air Volume per Sub - cu. ft. |
Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
AV96DC |
.48 |
5 7/16" |
2-10" or 12 |
9 1/8" for 10" 11 1/8" for 12" |
Avalanche Truck - Sealed |
Carpeted |
|
| AV96DR | .48 | 5 7/16" |
2-10" or 12 | 9 1/8" for 10" 11 1/8" for 12 |
Avalanche Truck - Sealed | Raw | Login |
