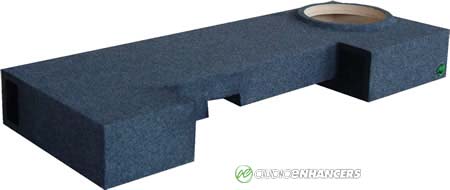

Avalanche and Escalade Subwoofer Box
AV96PS Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Single Ported 10" or 12" Subwoofer Box
♦Upward Firing Enclosure
♦Platinum Spring Loaded Terminal
♦100% American-made GREEN enclosure
♦Installation:Fits under rear seat, over transmission hump, will not affect normal seating. Enclosure must be removed for Midgate access. Opening is on the passenger side.
AV96PS with 10"Width |
Height |
Top Depth |
Bottom Depth |
44 1/8" |
5 5/8" |
16 1/2" |
16 1/2" |
AV96PS with 12"
Width |
Height |
Top Depth |
Bottom Depth |
45 3/4" |
5 1/8" |
16 1/2" |
16 1/2" |
Fits the Following Vehicles
♦02-13 Chevrolet/GMC Avalanche EXT
♦02-13 Escalade EXT
Other Models Available
♦AV65
♦AV96S
♦AV96D
"AV96P10SC with Rockford P series sounded GREAT. It played loud and clean and had good range for a single 10” ported box."
- Greg G. with Sound N Wheels Huntsville, AL
Model
|
Total Cu. Ft | (Vb) - Air Volume per Sub - cu. ft. |
Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
AV96PSC10 |
.96 | .96 |
5 7/16" |
1-10" |
9 1/8" |
Avalanche Truck - Ported |
Carpeted |
Login |
| AV96PSC12 | .96 | .96 | 4 13/16" | 1-12" | 11 1/8" | Avalanche Truck - Ported | Carpeted | Login |
| AV96PSR10 | .96 | .96 | 5 7/16" | 1-10" | 9 1/8" | Avalanche Truck - Ported | Raw | Login |
| AV96PSR12 | .96 | .96 | 4 13/16" |
1-12" | 11 1/8" | Avalanche Truck - Ported | Raw | Login |
