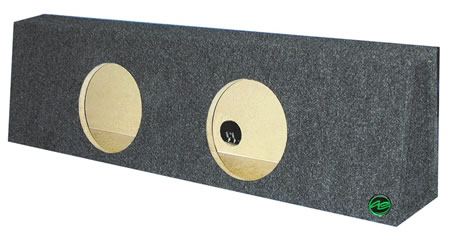

Regular Cab Subwoofer Box
FST240 Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Dual 10" or 12" Subwoofer Box
*3-10 or 12”, 4-10” or 12” available for an up-charge
♦Forward Firing Enclosure
♦Platinum Spring Loaded Terminal
♦Comes with Power Pocket Technology
♦100% American-made GREEN enclosure

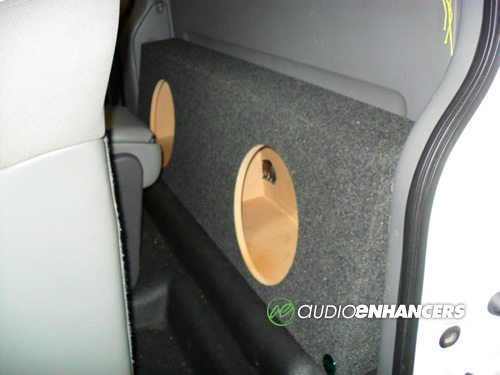

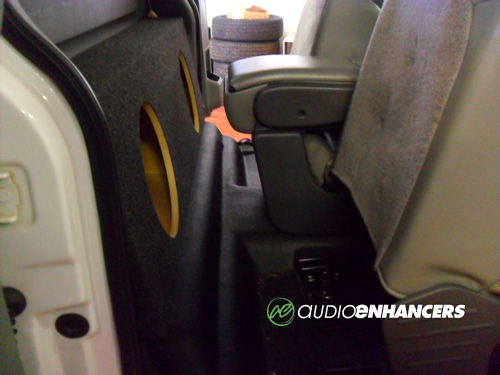

♦Installation: Fits behind seat, center console made need to be removed during installation.
Width |
Height |
Top Depth |
Bottom Depth |
55" |
15" |
5 1/4" |
8 1/4" |
Fits the Following Vehicles
♦Fits most full sized regular cab trucks up to 2006
Other Models Available
♦CSP10
♦CSP12
♦CSP10X
♦CSP12X
♦CT10
♦CT12
♦PP65
♦PBT110
♦PBT112
Model
|
(Vb) - Air Volume per Sub - cu. ft. |
Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
FST240C10 |
1.21 |
6 15/32” –10” |
2-10" |
9 1/8" - 10" |
Chevy Truck Regular Cab Sealed |
Carpeted |
Login |
FST240C12 | 1.21 | 6 7/32” – 12” | 2-12" | 11 1/8" - 12" | Chevy Truck Regular Cab Sealed | Carpeted | Login |
FST240R10 | 1.21 | 6 15/32” –10” | 2-10" | 9 1/8" - 10" |
Chevy Truck Regular Cab Sealed | Raw | Login |
FST240R12 | 1.21 | 6 7/32” – 12” |
2-12" | 11 1/8" - 12" | Chevy Truck Regular Cab Sealed | Raw | Login |
Note: 10” mounting depth based on a 6” diameter magnet, 12”mounting depth based on a 6 1/2” diameter magnet.
