Silverado and Sierra Subwoofer Box
SGMX107 Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Single 10" or 12" Subwoofer Box
♦Down Firing Enclosure
♦Platinum Spring Loaded Terminal
♦100% American-made GREEN enclosure

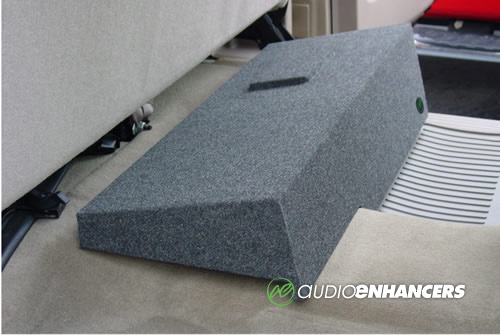

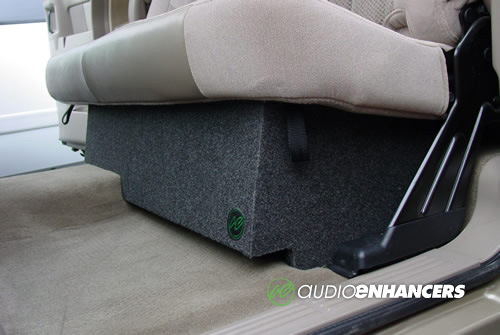

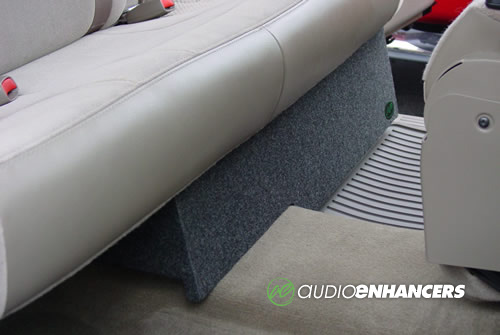

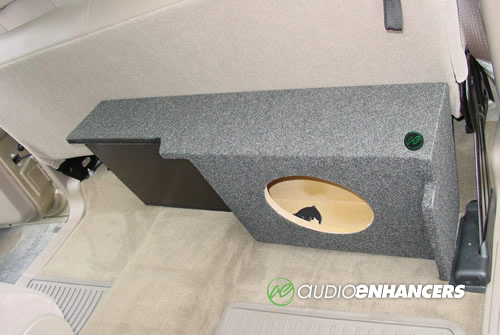

♦Installation: Fits under rear seat driver side, retains factory jack.
Note: Mounting depth based on a 7” diameter magnet.
Width |
Depth |
Front Height |
Rear Height |
35 1/2" |
14 7/8" |
10 1/4" |
7 1/4" |
Fits the Following Vehicles
♦01-06 and 07 Chevrolet/GMC Classic 2500HD Silverado/Sierra Extended Cab
♦01-06 and 07 Chevrolet/GMC Classic 3500 Silverado/Sierra Extended Cab
♦99-06 and 07 Chevrolet/GMC Classic 1500 Silverado/Sierra Extended Cab
* will fit Super Sport (SS) models
* will not fit trucks with rear split-bench seats.
♦99-04 2500 Chevrolet/GMC Silverado/Sierra Extented cab.
* will not fit trucks with rear split-bench seats.
Other Models Available
♦GMX190
♦GMX240
Model
|
(Vb) - Air Volume per Sub - cu. ft. |
Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
SGMX107C10 |
1.07" |
6 13/16" |
1-10" |
9 1/8" for 10" |
Chevy Truck Ext-Cab Sealed |
Carpeted |
Login |
| SGMX107C12 | 1.07" | 6 13/16" | 1-12" | 11 1/8 for 12" | Chevy Truck Ext-Cab Sealed | Carpeted | Login |
| SGMX107R10 | 1.07" | 6 13/16" |
1-10" | 9 1/8" for 10" |
Chevy Truck Ext-Cab Sealed | Raw | Login |
| SGMX107R12 | 1.07" | 6 13/16" | 1-12" | 11 1/8 for 12" | Chevy Truck Ext-Cab Sealed | Raw | Login |
| SGMX107X10 | 1.07" | 6 13/16" | 1-10" | 9 1/8" for 10" | Chevy Truck Ext-Cab Sealed | XtremeKote | Login |
| SGMX107X12 | 1.07" | 6 13/16" | 1-12" | 11 1/8 for 12" |
Chevy Truck Ext-Cab Sealed | XtremeKote | Login |
