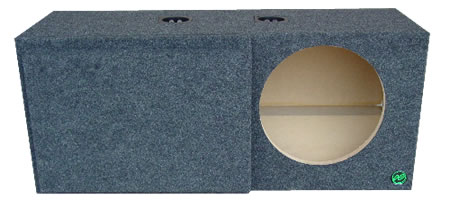

Ford Mustang Subwoofer Box
TANG210P Speaker Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Single 12" Ported Subwoofer Box
♦Rear Firing Enclosure
♦Platinum Spring Loaded Terminal
♦100% American-made GREEN enclosure

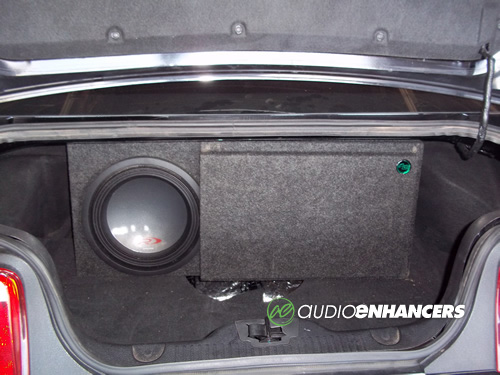

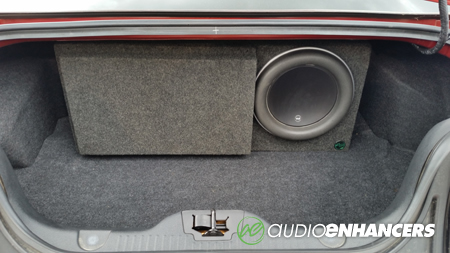

♦Installation: Slides up against rear seat, installs through trunk opening. Port must be added after installation using silicon and provided screws
Note: Works with Shaker System. Does not work with Mach systems or convertibles models.
♦Adjustable Port Information
- Tunable to subwoofer or drivers preference
- Comes tuned to 34hz
- Tuning frequency may be increased by cutting down the port – each inch cut off is equal to 1hz increased frequency
Example: If you cut 2” off the port, the port will be
tuned at 36hz
| Net Volume | Port Volume | Port Length | fb/F3 | |
| TANG210P | 2.1 | 19 sq" | 21" | 34/30 |
| 20" | 34/31 | |||
| 19" | 35/31 | |||
| 18" | 36/31 | |||
| 17" | 37/31 | |||
| 16" | 38/31 | |||
| 15" | 39/31 |
Bottom Width |
Top Width |
Height |
Depth |
Custom Fit |
|||
Fits the Following Vehicles
♦05-15 Ford Mustang Coupe
Other Models Available
♦TANG210
♦MC170
♦MMC170
"Looked everywhere for a 12 inch ported sub enclosure that could fit my 2012 5.0 mustang. When I saw this I decided to give it a try. Was honestly not expecting much but this enclosure is a great buy. Dropped a type R in it and nothing compares." - bulldog
"This is an awesome enclosure, sits in the back giving a lot of room in the trunk. Box does not slide or does it take all the room, I have a 550$ sub image dynamics I'd max 12v4 it hits." - Ezequiel
Model
|
Total Cu. Ft.
|
Per Sub | Mounting Depth
|
Hole Openings
|
Cut Out D
|
Box Type
|
Finishes |
Dlr Price
|
TANG210PC |
2.10 |
2.10 | 10 3/4" |
1-12" |
11 1/8" |
Mustang - Ported |
Carpeted |
Login |
| TANG210PR | 2.10 | 2.10 | 10 3/4" |
1-12" | 11 1/8" |
Mustang - Ported | Raw | Login |
