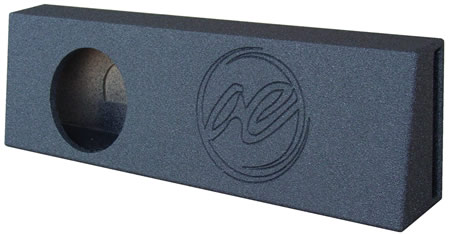

PBT112X Enclosure
Speaker/Subwoofer Enclosure Specifications
♦Single 12" subwoofer enclosure
♦Made of 3/4" Face Plate and 5/8" USA MDF walls
♦Platinum Spring loaded terminal
♦Ported Subwoofer enclosure
♦100% American-made GREEN enclosure
♦Installation: Fits behind seat Note: Speaker opening is on the passenger’s side of the cabinet.
Width |
Height |
Top Depth |
Bottom Depth |
49" |
14" |
4 3/4" |
7 3/4" |
Fits the Following Vehicles
♦Fits most Full Size and Mid Size Regular Cabs and SUVs
Works Well with the Following Subwoofers
♦Memphis PR and SR
♦MTX
♦Ample
♦Crossfire
♦Power Bass
♦AudioBahn
♦Shallow Mount Subwoofers
Model
|
Total Cu. Ft
|
Net Cu. Ft | Hole Openings
|
Fb/F3
|
Mounting Depth | Cut Out D |
Finishes | Dlr Price
|
PBT112C |
1.73 |
1.23 | 1-12" |
44/39 |
6 1/4 | 11 1/8 |
Carpet | Login |
| PBT112R | 1.73 | 1.23 | 1-12" | 44/39 | 6 1/4" | 11 1/8" | Raw | Login |
| PBT112X | 1.73 | 1.23 | 1-12" |
44/39 | 6 1/4" | 11 1/8" | XKote | Login |
**Fb=Port Frequency
**F3=Cut-Off Frequency
Note: Net cubic feet are per sub and less port displacement only.
